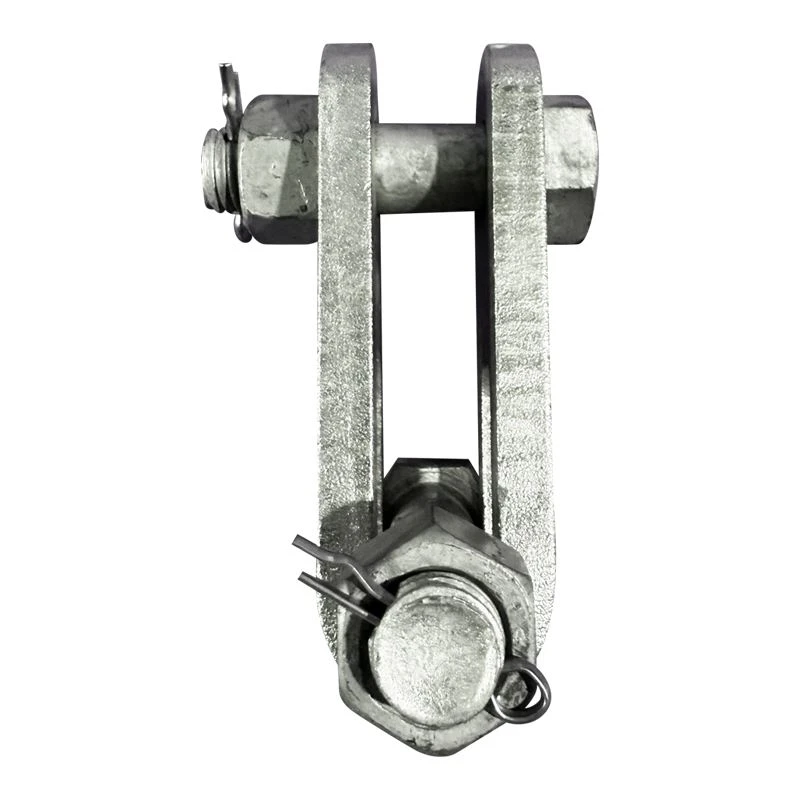

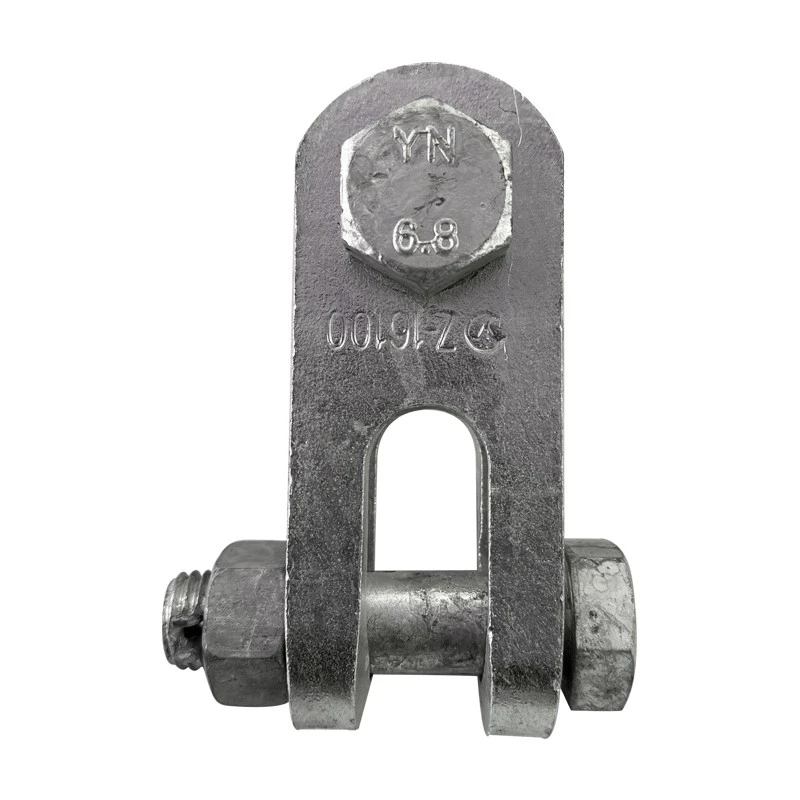

Z-16100 Clevis



Model: Z-16100.

Type: Z-type coupling (right-angle bracket).

Nominal breaking load: 160 kN.

Material: Hot-dip galvanized steel, stainless steel closing pin.

Weight: Approximately 1.16 kg.
Plate width: 16 mm ("16" in the model number corresponds to the value).

Connection hole diameter: 22 mm (accepts M22 bolts).
Dimensions: 100 mm (height) × 16 mm (width) × 22 mm (thickness).

Applications: Right-angle connections of insulator strings and securing cable terminals to frames in 10kV-35kV distribution lines.





The Z-16100 Clevis typically has a breaking load of 160 kN, allowing it to withstand greater tensile forces during operation, ensuring the stability of power line connections. To meet the needs of a wider range of users, the Z-16 bracket is available in several versions, such as the Z-16C1 and Z-16C2. While these models share the same breaking load, they differ in size and weight, creating significant differences in performance during operation.

The Z-16100 Clevis typically has a breaking load of 160 kN, allowing it to withstand greater tensile forces during operation, ensuring the stability of power line connections. To meet the needs of a wider range of users, the Z-16 bracket is available in several versions, such as the Z-16C1 and Z-16C2. While these models share the same breaking load, they differ in size and weight, creating significant differences in performance during operation. The Z-16100 Clevis can be found in applications such as overhead transmission lines, substations, and high-voltage transmission towers, making a significant contribution to the power industry.

From material selection to production, every step of the Z-16100 Clevis is crucial. The creation of high-quality products is often closely linked to the production process. When selecting raw materials, it's crucial to use medium-thick steel plates; thinner steel plates won't be effective. The steel is cut to the appropriate size and then stamped and bent using a press to create the initial right-angled cladding shape. Hot-dip galvanizing is essential in the production process. The uniform, dense galvanizing layer not only provides excellent corrosion protection but also extends the product's lifespan.

Under normal circumstances, the Z-16100 Clevis has a long service life. However, many users have reported performance issues after only a short period of use. Professional manufacturers believe this issue is often due to excessive loads. Many users believe the Z-16100 Clevis has a high breaking load and therefore fail to analyze the load during use. This can lead to loads exceeding the rated load due to wire overload, icing, strong winds, and other factors. This not only accelerates material fatigue but can even lead to outright breakage. This demonstrates the importance of preparation before selecting a cladding model.

Transporting the Z-16100 Clevis is the final step in their journey from factory to customer's door. They are packed in sturdy wooden crates to prevent collisions and friction between panels. Moisture-proof paper or soft cushioning material is wrapped around the panels to effectively prevent scratches and wear on the zinc coating. Due to the lengthy transportation process, the panels must be securely fastened to prevent them from shifting or falling due to vehicle turbulence. More importantly, the corners and connection holes must be protected from stress and deformation. Upon receipt, the Z-16100 Clevis must be inspected for appearance and performance. Only those that meet the requirements are ready for use.
